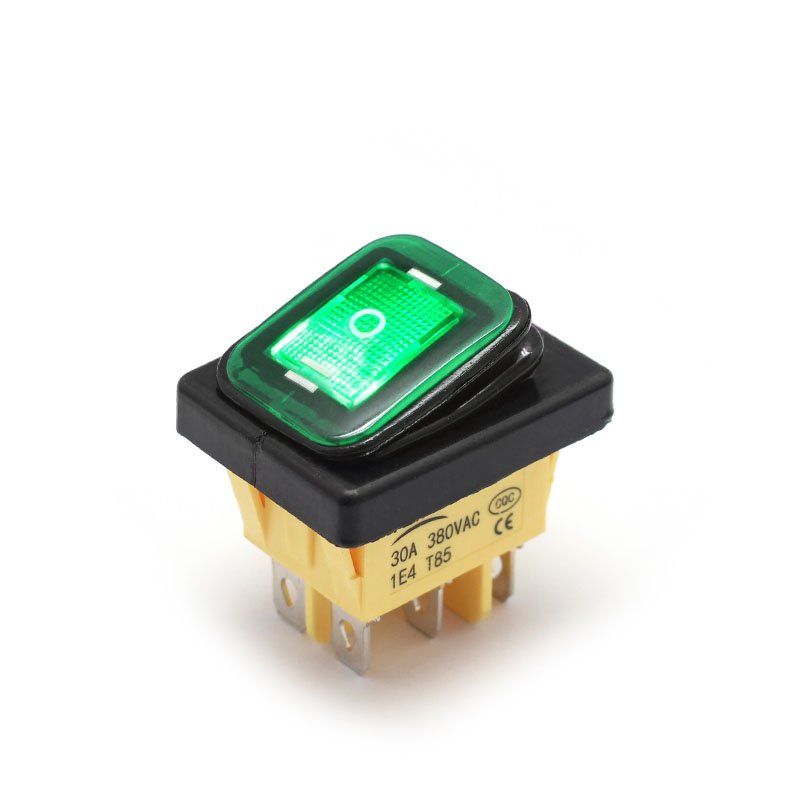

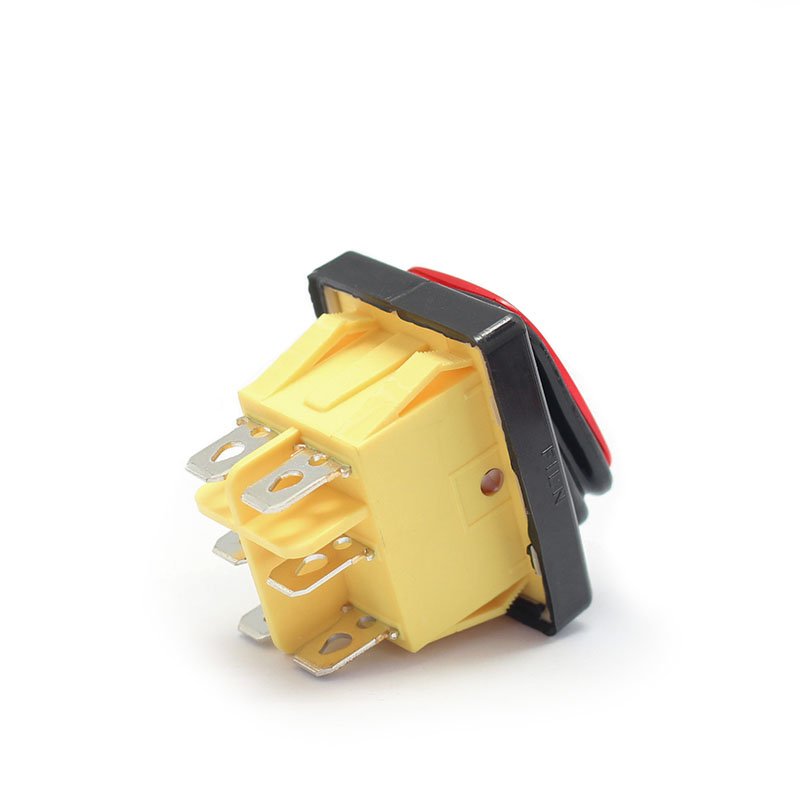

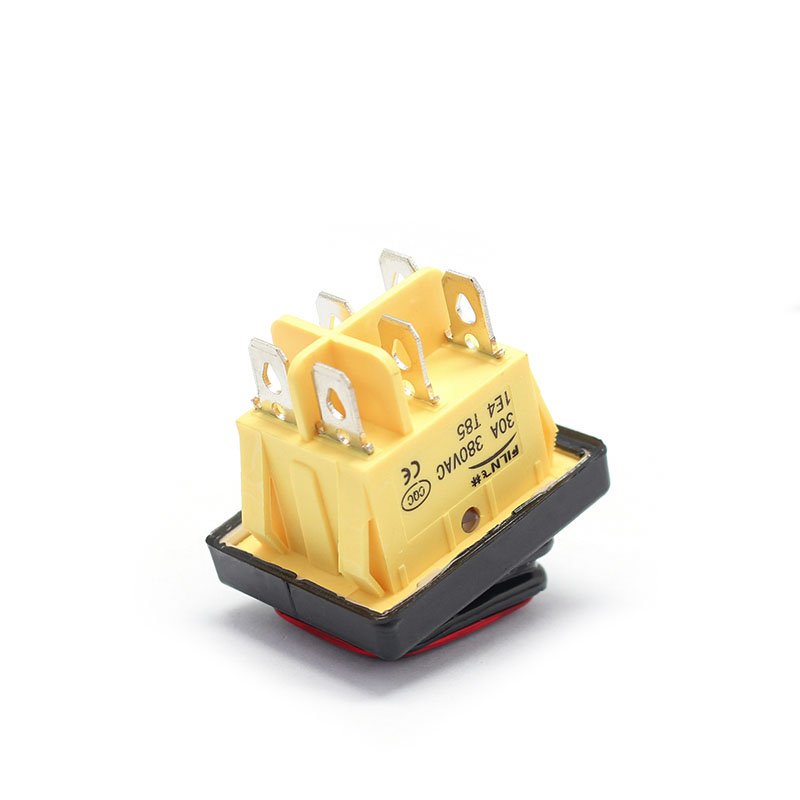

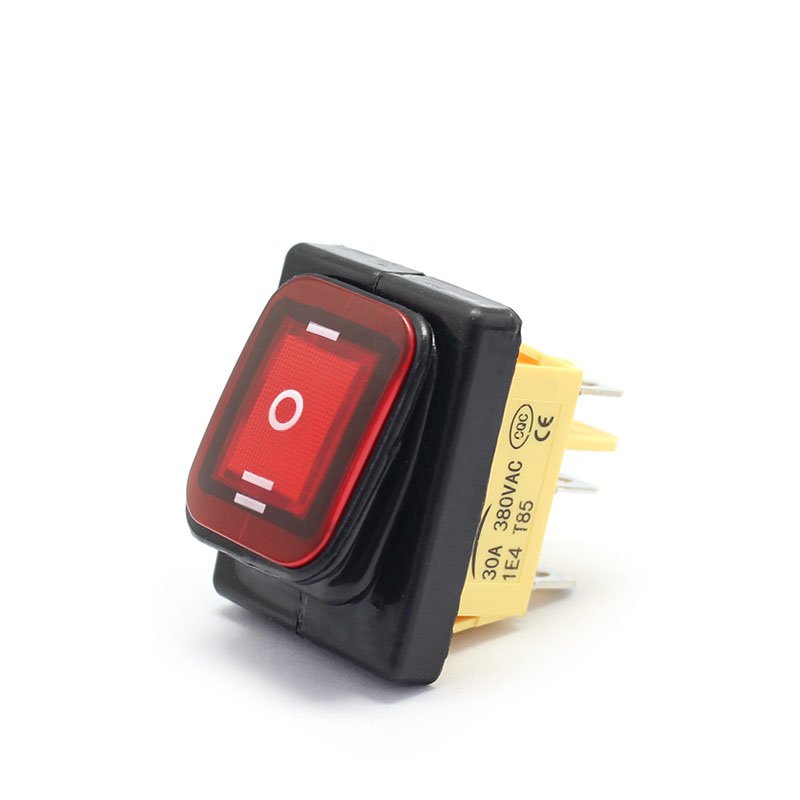

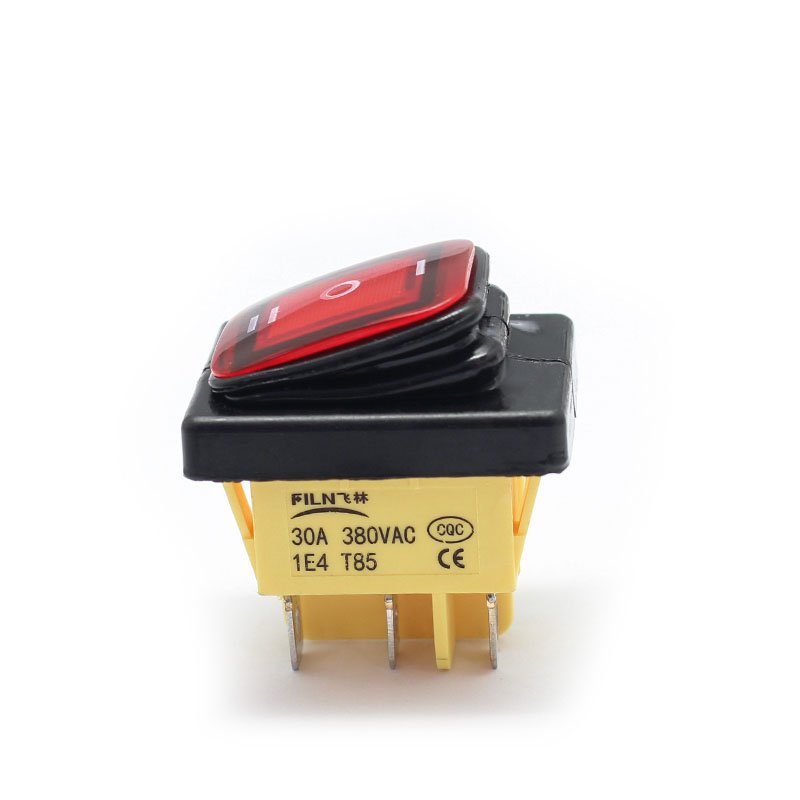

3 Position Rocker Switch with LED KCD4

3 way Rocker Switch Product Introdution

This 6-pin high-current 3 way rocker switch is designed and developed by German customers. We met this manufacturer at the Munich Electronics Show in Germany, and he told us about the problems he encountered with the ship type switch he is currently using. I understand that the 3 way rocker switch is also imported from China, and all specifications of the 3 way rocker switch are in use.

Through our understanding of customers, we understand the following needs of customers:

1. Waterproof rocker switch is required, and 3 way, DPDT ON-OFF-ON is required.

2. The waterproof cap holster needs to be firmly stuck to the panel, and the holster cannot harden out after a long time.

3. The ship type switch requires a large current and can reach up to 30A.

4. The bottom plastic should be made of high-temperature resistant materials so that the terminal will not shake due to high temperature during soldering.

5. The ship type switch needs to complete the CE certification. If there is a VDE demand, the certification will be completed at an additional cost.

6.3 The way rocker switch needs built-in 250V LED lamp beads.

7. The tensile force of the waterproof leather case needs to reach 50N or more.

8. Because it is for household use, the bulb inside needs to be LED, which is more energy-saving and environmentally friendly.

9. The button of the rocker switch should be smooth when switching back and forth in the third gear, and there should be no jams or unclear gears.

On this basis, at the same time, the manufacturer’s monthly dosage is super large, and the price should be economical on the basis of quality assurance. Because this directly affects the cost of their entire product, profit, the amount of use of the modified product, and the marketing of distributors in various places.

For this reason, JIAOU decided to develop a cost-effective 3 way rocker switch for him for free. After the efforts of FILN R&D engineers, we improved this waterproof rocker switch after 2 weeks. The waterproof leather case is made of Dingqing silicon and plastic. The shell is made of brand new Gubyshev PA66 material. 3 way rocker switch with high current up to 30A.

This improved 3 way rocker switch solves the troubles of the guests before. After many samples were sent, the guests tested and observed many times. At the Shanghai International Hotel Exhibition, the guests flew over from Germany to meet with us. After confirming the product parameters, specifications, purchase quantity, and our production cycle. We signed the contract and paid the deposit on the spot.

So what exactly is this 3 way rocker switch? Everyone has been looking forward to it for a long time. The following is the detailed description of this improved 3 way rocker switch.

1. This 3 way rocker switch, the plastic shell is made of PA66 high temperature resistant nylon material, the material is brand new, and the waterproof leather case is made of Dingqing material.

2. The opening installation size of this improved 3 way rocker switch is 30x22mm, which is directly inserted into the installation panel, and there is also a smaller size 28x22mm for selection.

3. This 3 way rocker switch has built-in LED bulbs, and various voltages can be customized according to requirements, such as 12V, 110V, 220V, 230V, 250V, etc.

4. The contact point of this 3 way rocker switch is a 4 mm thick silver point, and the size of the solder foot is 6.3*0.8mm.
