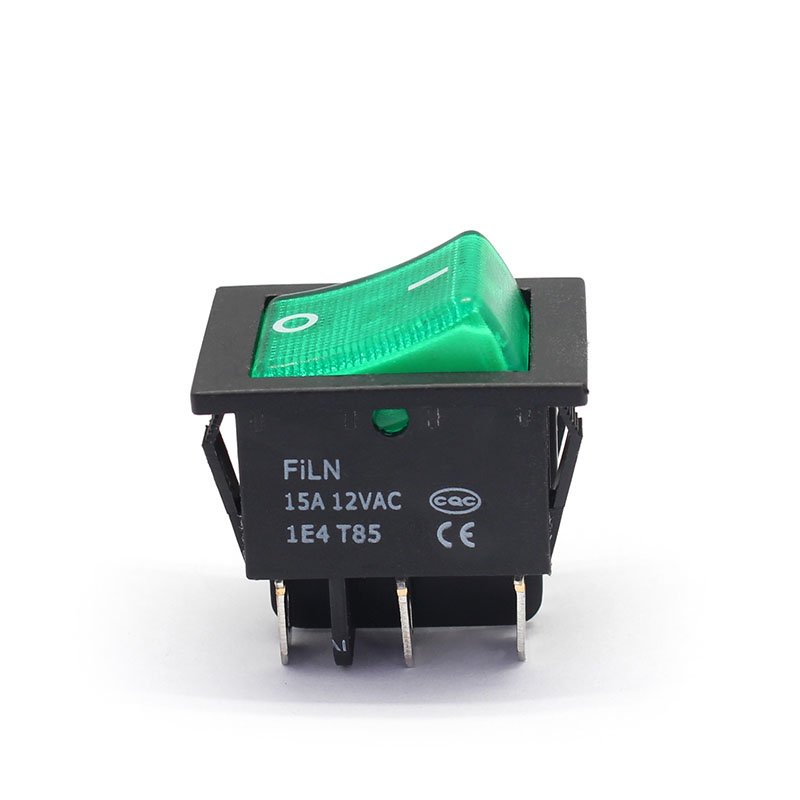

What is a 15A 12 volt 2 way rocker switch?
1.The mounting bore diameter of the 2 way rocker switch is 30*22mm, and the installation mode is a buckle. Open a installation hole of 30*22mm on the 15A rocker switch, press the 2 way rocker switch into the mounting hole by your hand. The ears on both sides will jam the panel and the 2 way rocker switch is fixed, it is very easy to use. Please note that the thickness of the panel should be between 0.8 to 2mm.
2.The 2 way rocker switch is not waterproof. If you need the waterproof style, you can choose the 2 way rocker switch with waterproof cap, and the waterproof rating is IP67. Seal is formed through the waterproof cap, and the waterproof cap adopts silicone material it is waterproof and oil prevention, and can be used on the kitchen equipment.
3.The current of the on off 2 way rocker switch is 15A, we can also provide the product with the current of 20A and 30A.
4.The on off 2 way rocker switch has a variety of voltages and its range is 3V to 220V, the common voltages are 3V, 6V, 12V, 24V, 110V, 120V, 220V, 250V.
5.The KCD way rocker switch has five colors of red, green, yellow, blue, white.
6.The service life of the JIAOU 2 way rocker switch is 100,000 times with the power of 1000W. If it is higher than 1000W, its service life will become shorter, if it is below than 500W, its service life will become longer.
7.The JIAOU 2 way rocker switch has passed the certifications of UL, CE, ROSH, etc. These international certifications proved that the various functions of the FIln 2 way rocker switch meet the international standard, ensuring the quality of 15A 12 volt 2 way rocker switch. It can be used and sold in the US and Europe market.
8.The press key of the KCD 2 way rocker switch adopts nylon PC material, lamp base and rocker switch base both adopt nylon PA66 material, it is flame-retardant and high-temperature resistant. When the rocker switch is welded with a wire lamp pin, it won’t cause the rocker switch’s base to melt. The metal pin of the rocker switch adopts copper H62 material.
9.The 2 way rocker switch has three functions of on off, on on and reset on off.
How to connect a KCD on off 15A 12 volt 2 way rocker switch?
First, the two side pins of the on off rocker switch are connected to the positive and negative poles, and the two lamp pins are connected to the device. Press the LED rocker switch, the switch key will bright up and the device starts. Press the switch again, the rocker switch’s LED will light off, and the device is closed. Under this wiring way, the switch lamp is not often bright.
What are the advantages of the 15A 12 volt 2 way rocker switch?
1.There is no MOQ of the 2 way rocker switch, we can provide the samples free of charge for your test.
2.JIAOU can provide customized service, welding the wire directly on the rocker switch, then connect the wire.
3.The JIAOU 2 way rocker switch has passed the international certifications of UL, CE, ROSH, ensuring the product’s quality and consistency.
4.JIAOU has a professional team of engineers to R&D and design the rocker switch, also has a team of engineers specializing in producing rocker switch mould. They can complete the design and mould development of the new 2 way rocker switch within 30 to 40 days.
5.JIAOU’s sales staff are all engineers who can solve and respond to any customer questions about the rocker switch at the fastest time.
Product Parameters
| Product Item | KCD |
| Panel Mount Diameter | 22*30mm |
| Contact Way | With wire |
| Install Way | Buckle |
| Lamp Type | LED |
| Rated voltage | 3v, 5v, 6v, 12v, 24v,13v, 110v, 120v, 220v, 240v, 250v, 380v |
| Lamp Color | Red,white,blue,green,black,yellow |
| Shell Material | Brass plated nickel |
| Base Material | PA66 nylon |
| Terminal Material | Brass |
| Applications | Coffee machine, kitchen equipment, household appliances, automobiles, medical equipment, industrial equipment etc |
| Current | 15A |
