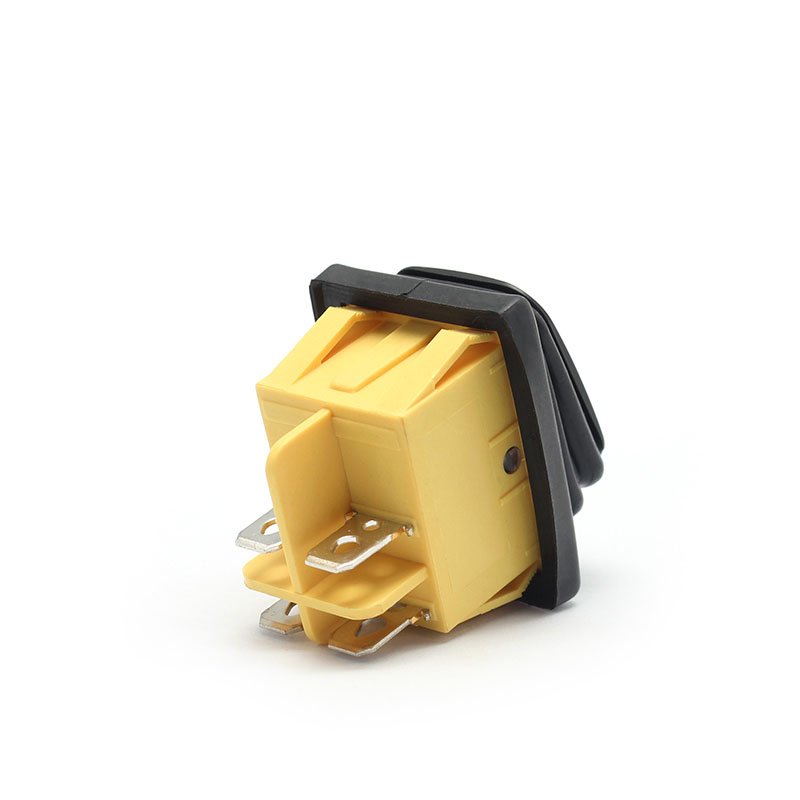

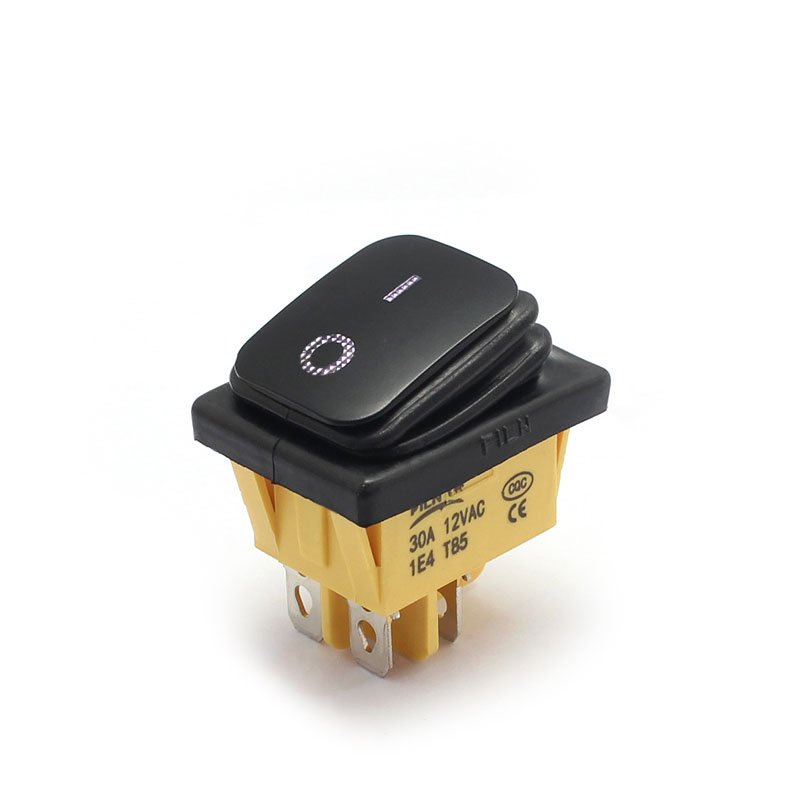

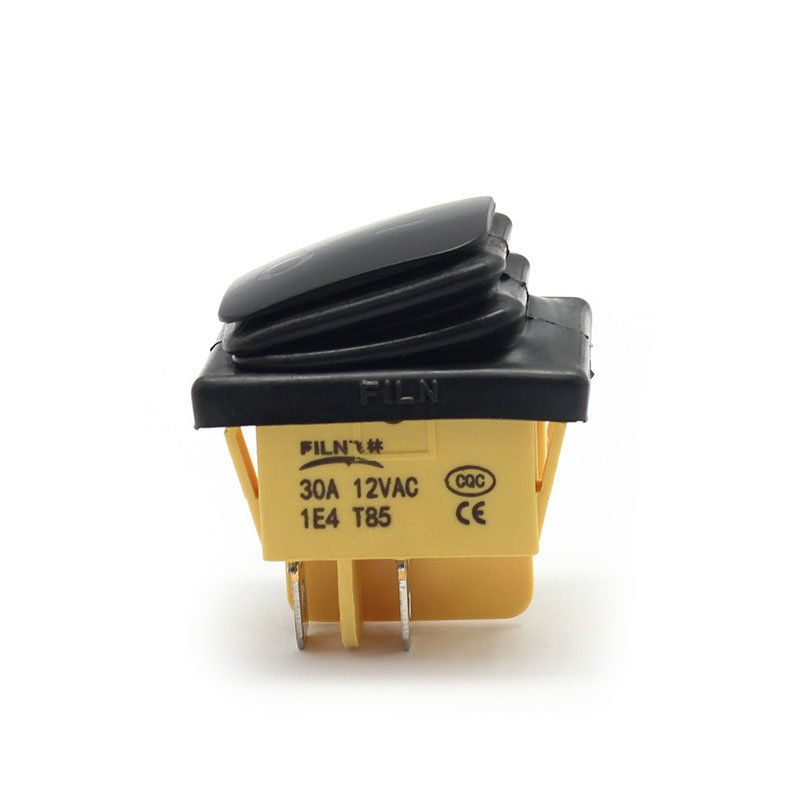

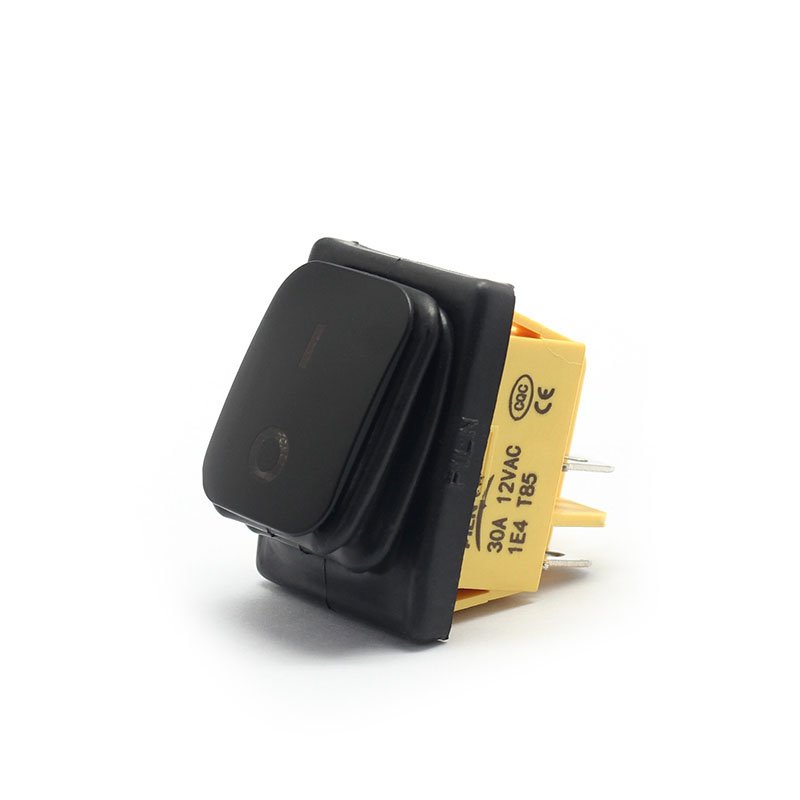

2 Position Rocker Switch with LED Black Painting KCD4

The Features of the 12V Rocker Switch

1. The cover surface is painted to achieve a variety of symbols and patterns, and the patterns will light up.
2. The previous rocker switch was not waterproof, while this 4 pins rocker switch is waterproof and its rating is IP67.

Type of Ship Type 12v Rocker Switch

12V rocker switch is often used as the power switch of electronic equipment. Its contacts are divided into SPDT and DPDT.

Single pole single throw: 1 dynamic contact and 1 static contact. There is only one channel. This type of switch is relatively simple. It used to be used a lot, but now it’s basically not used.

SPDT: one moving contact and two static contacts (static contacts on both sides can be connected respectively), but there are two static contacts, which can be connected with static contacts on both sides respectively.

Double pole single throw： two dynamic contacts and two static contacts, with two channels. Double pole single throw 12V rocker switch has two dynamic contacts and two static contacts respectively, which is one more channel than single pole single throw switch.

DPDT：2 moving contacts and 4 static contacts, 4 channels (2 static contacts on both sides can be connected respectively).

Our model is double pole single throw or double pole double throw.

The Common Problems of the 12V Rocker Switch

1. The ear buckle of the rocker switch often breaks off.

The reason why the ear buckle of the rocker switch is easy to break is that many people adopt old plastic to produce rocker switch’s base.

If you want to solve this problem, please use the latest quality plastic to produce it.

2. The rocker switch is often burned out or the plastic is melted away.

There are two reasons for design and material, whether the rocker switch’s pin is purple copper or silver point.

When the current is large, it will be greater in instant contact, then the spark will generate heat.

Metal materials can heat up and cause the plastic to melt away if the material is of low quality.

What is a 12V Rocker Switch?

The Advantages of the 12V Rocker Switch of JIAOU?

1. There is no MOQ, you can purchase the 12V waterproof product from one piece.
2. The 30A rocker switch had passed the certifications of UL, CE, ROSH, it can be sold in the US area.
3. The product can achieve a variety of voltages, such as 125V rocker switch, 110V rocker switch, 12V rocker switch, etc.
4. JIAOU has 15 years of overseas sales experience about rocker switches and is familiar with foreign trade processes in various countries.
5. JIAOU has a professional production team, with an automated rocker switch production line, the 10,000 pieces of products will be completed within 7 days.
6. They can provide a complete solution for a rocker switch.
7. The warranty period of the 4 pins 12V 30A waterproof is 5 years, JIAOU will change the problem product free of charge during the guarantee period.
